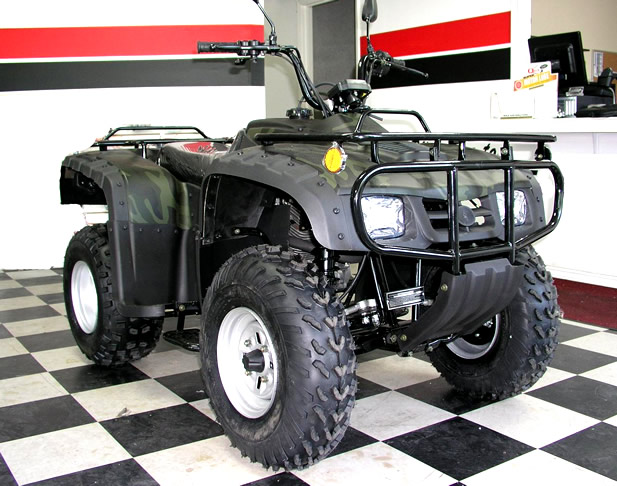

ATV250 Specification Engine Type 4-Stroke, Air-Cooled, 5-Speed Semi-Automatic Dimensions (mm): 1960 x 1010 x 1120 Wheel base (mm): 1160 Height of seat (mm): 780 Cylinder Arrangement Vertical Single Final Drive Shaft Bore x Stroke (mm) 71 x 58 Piston Displacement (cc) 230 Compression Ratio 8.7:1 Maximum Power (kw/r/min) 10 Maximum Torque (N.m./rpm) 15 / 6000 Starter System Electric/Recoil Backup Lubrication Pressure/Splash Transmission 5-Speeds Semi-Automatic with Reverse Dimension Overall LxWxH (in) 74 x 41 x 45 Wheel Base (in) 46 Seat Height (in) 32 Ground Clearance (in) 6 Rider Capacity 1 Person Dry Weight (lb) 485 Chassis Brake (Front/Rear) Drum/Drum Tire, Front 22 x 8-10 Tire, Rear 22 x 11-10 Ignition Type C.D.I. Fuel Tank Capacity (L) 12 Engine Oil Capacity (L) 1.6 Gear Oil Capacity (L) 0.27 Front Suspension Independent Front Suspension Rear Suspension Swing Arm Max. Load Capacity (lb) 363 |
