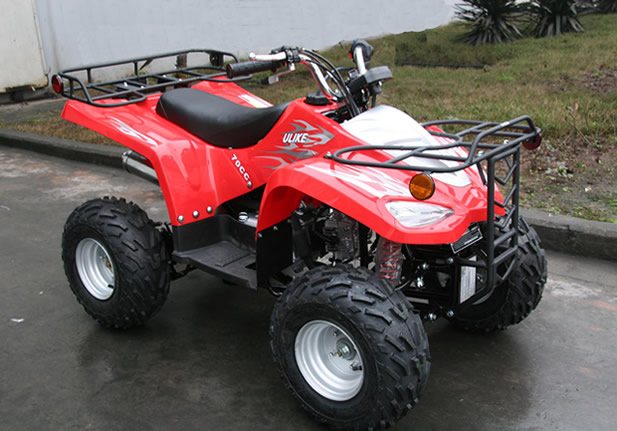

ATV70 Specification |
|
|
ENGINE |
|
|
Type |
Air-cooled,4-stroke,1 cylinder |
|
Cylinder Size |
ф47㎜×41.4㎜ |
|
Displacement |
72ml |
|
Compression Ratio |
8.8±0.1:1 |
|
Max. power |
3.8kW 8500 min-1 |
|
Max.torque |
4.8N.m 6500 min-1 |
|
Carburetion |
PZ19 |
|
Ignition |
CDI |
|
Starting |
Electric |
|
Transmission |
Automatic |
|
Drive Train |
Chain |
|
CHASSIS |
|
|
Suspension/Front |
Independent double swing arm |
|
Suspension/Rear |
Single swing arm |
|
Brakes/Front |
Dual drum |
|
Brakes/Rear |
Ventilated hydraulic disc |
|
Tires/Front |
AT16 x 8-7 radial |
|
Tires/Rear |
AT16 x 8-7 radial |
|
DIMENSIONS |
|
|
L x W x H |
1400mm x 880mm x 925mm |
|
Seat Height |
830mm |
|
Wheelbase |
920mm |
|
Ground Clearance |
60mm |
|
Fuel Capatity |
4.0L |
|
Dry Weight |
103kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
